Build a Twin Reverb cabinet

Some years ago I had to build a Twin Reverb cabinet for myself. Unfortunately they weren’t as much available as they are today. And I wanted to use a good quality wood. As the drawings were not available at the time I had to deduct it from pictures and the chassis of a Super Six amplifier (which is exactly the same btw.).

So let’s start with the drawing:

You can download it here Cabinet.

image bouwtekening

Then comes the wood selection process. The originals used Solid Yellow Pine which was one of the cheaper kind of woods then. Now it is not. I paid about 80 euro’s for the wood. So be it.

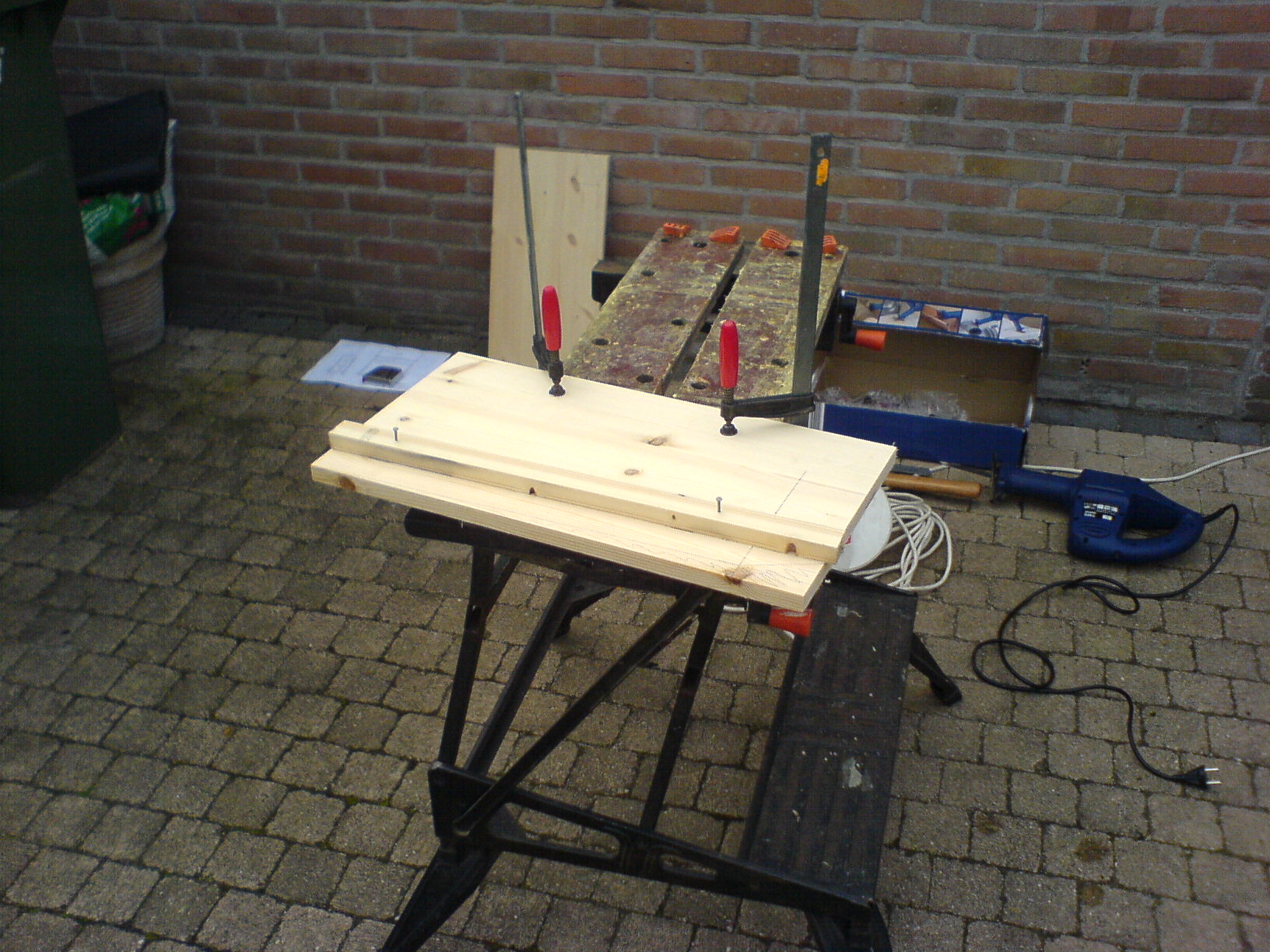

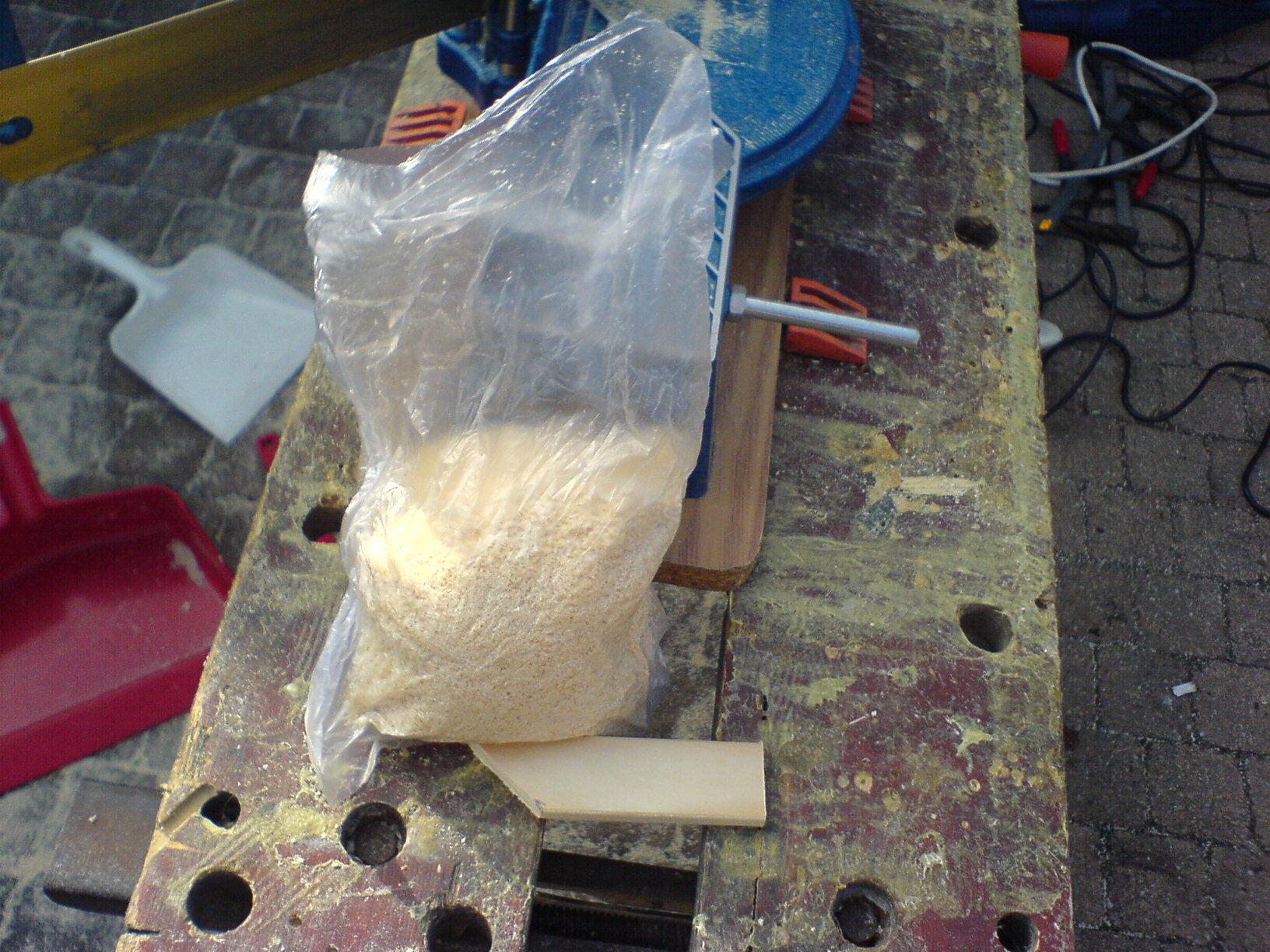

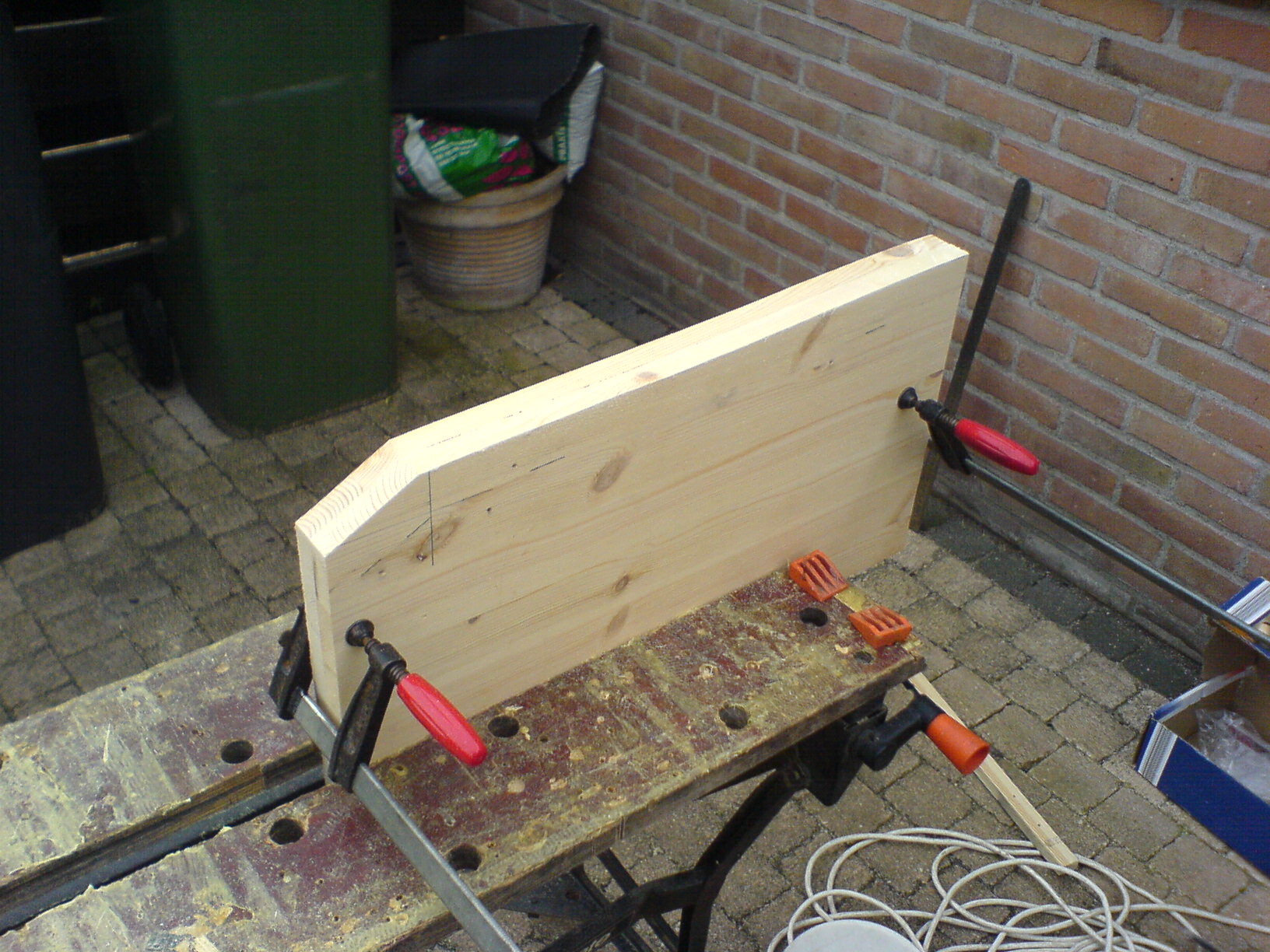

Next the cutting process. And by studying and when I got the chance some measuring as well :), the wood was cut, and roughly sanded. Save any saw dust or wood cutting dust. Using white woodworking glue you can make a filler with the same color.


DSC00034 DSC00044 DSC00035

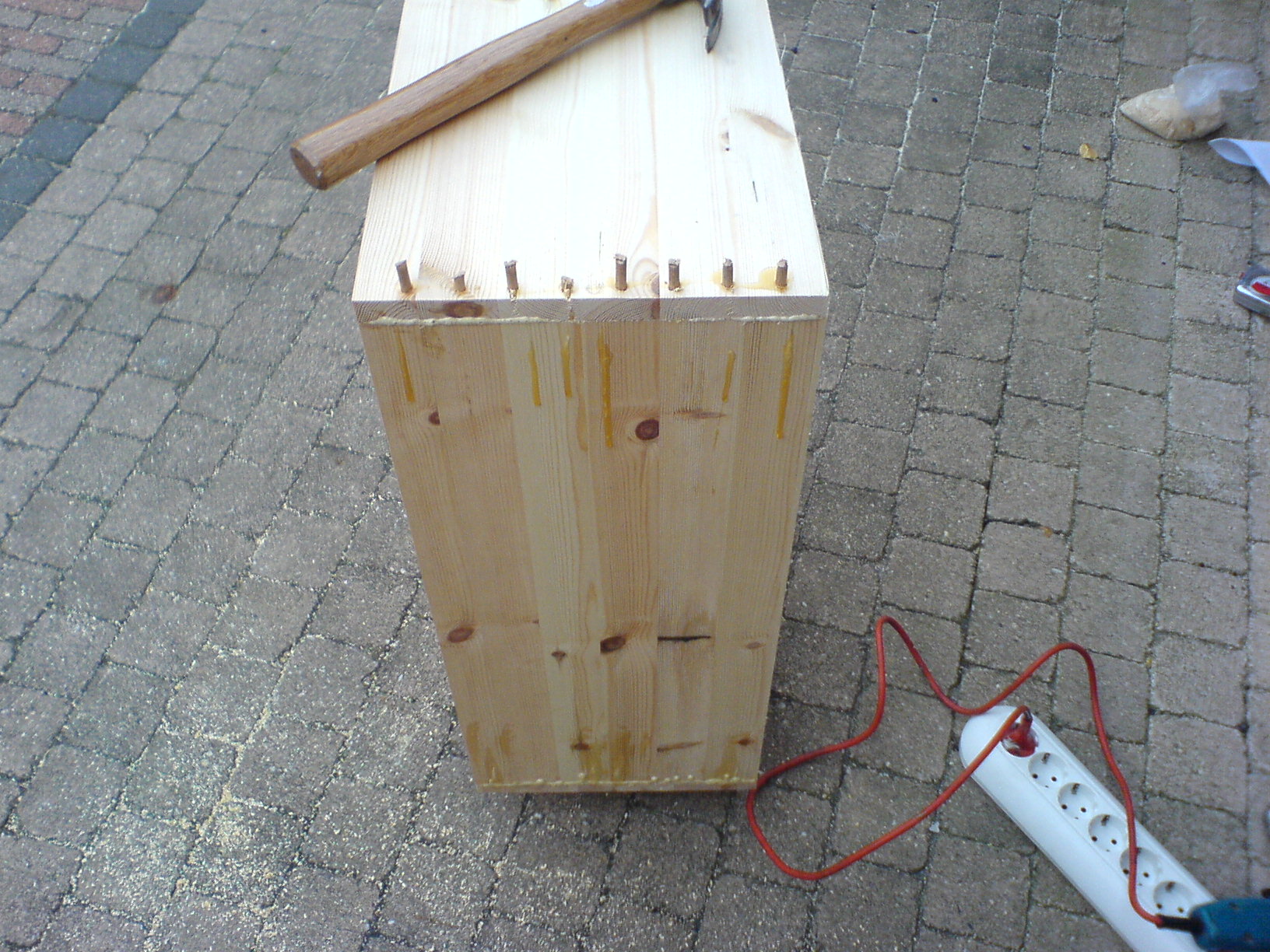

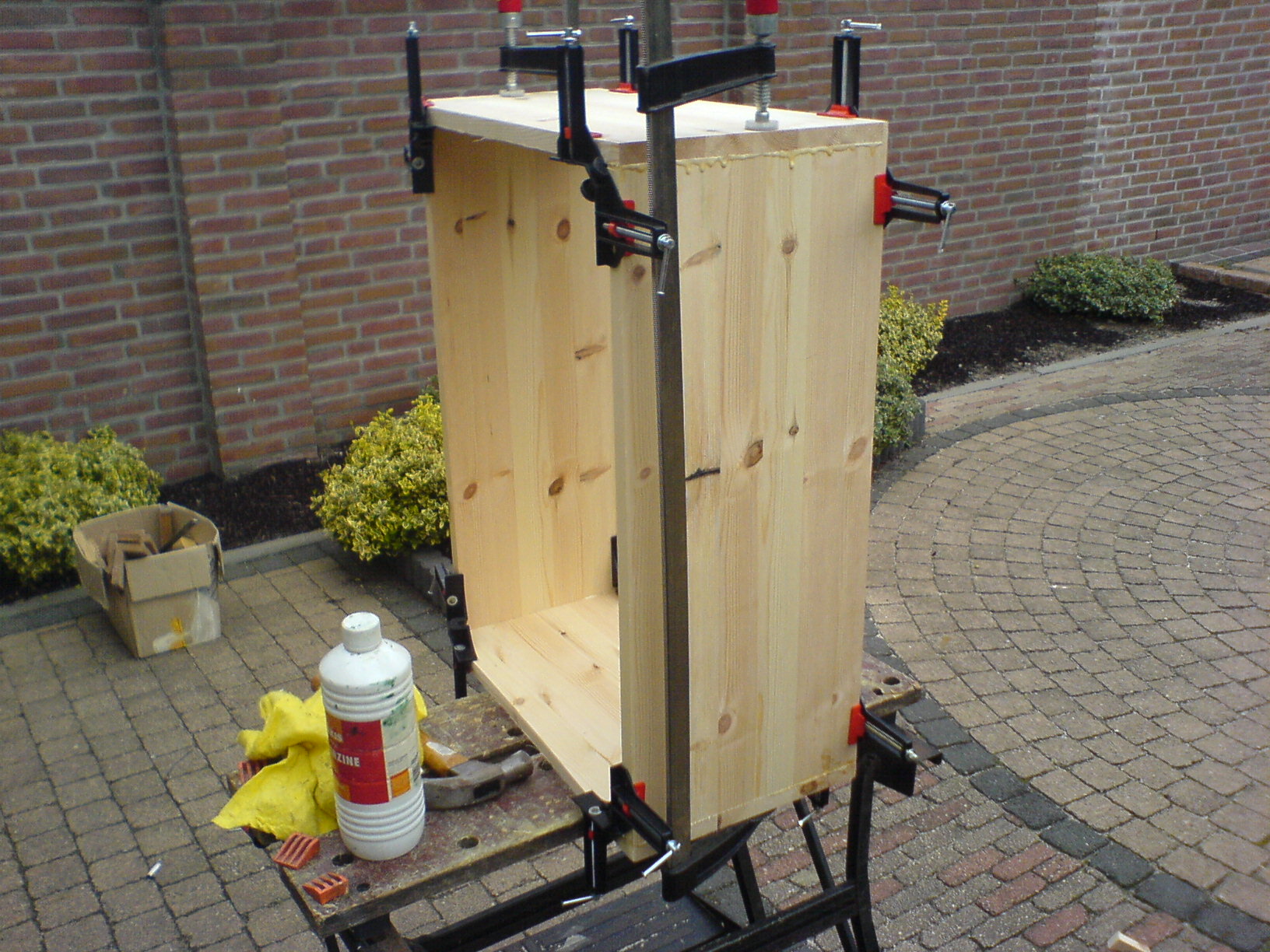

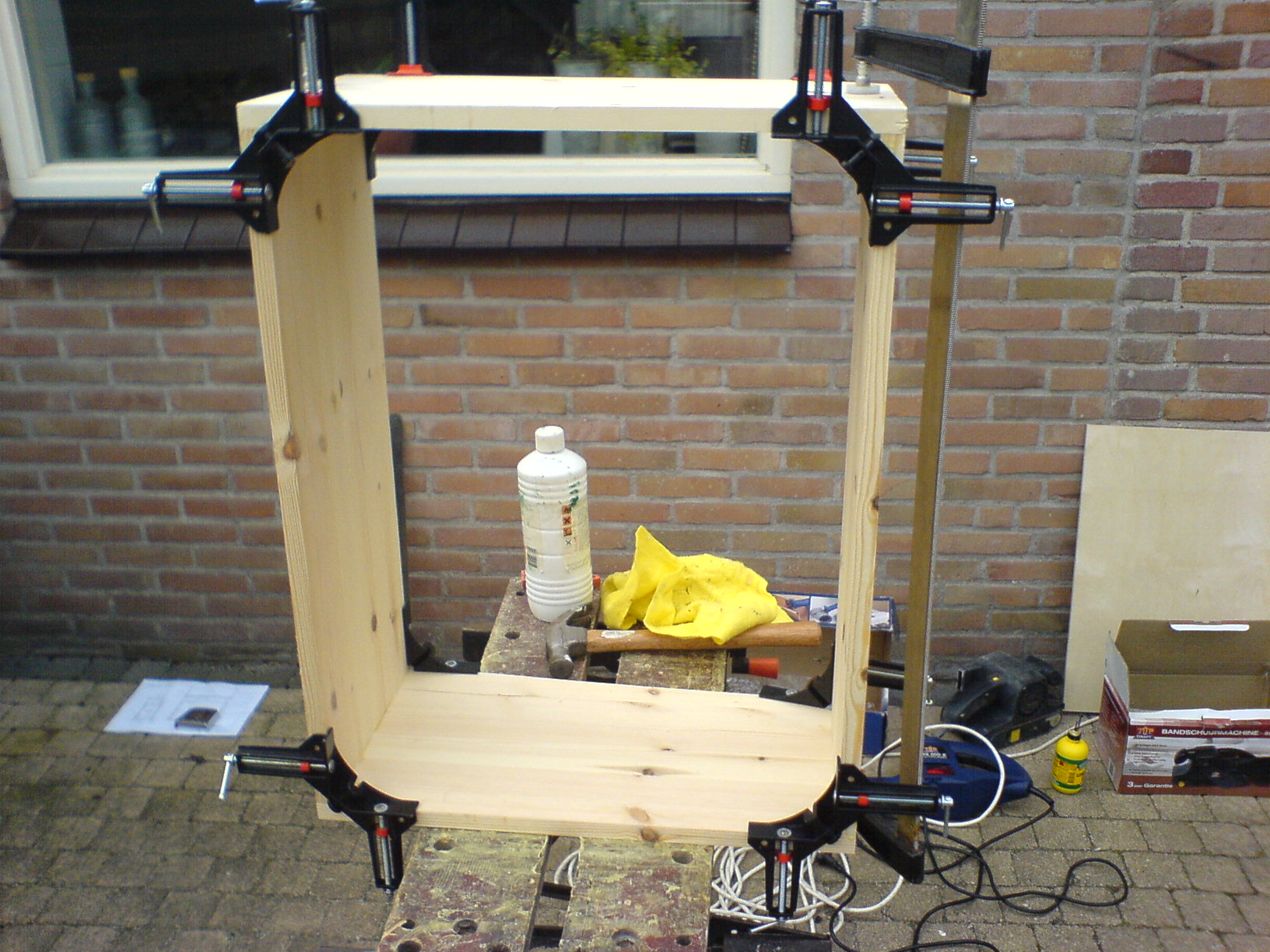

As I hate using screws if there is another alternative, I use dowels to extend the strenght in the corners.  First glue the sides square. Let it dry for 24 hours and then drill holes for about 5-6 cm. Then fill it with glue. Hit the dowels in and let it dry for another 24 hours.

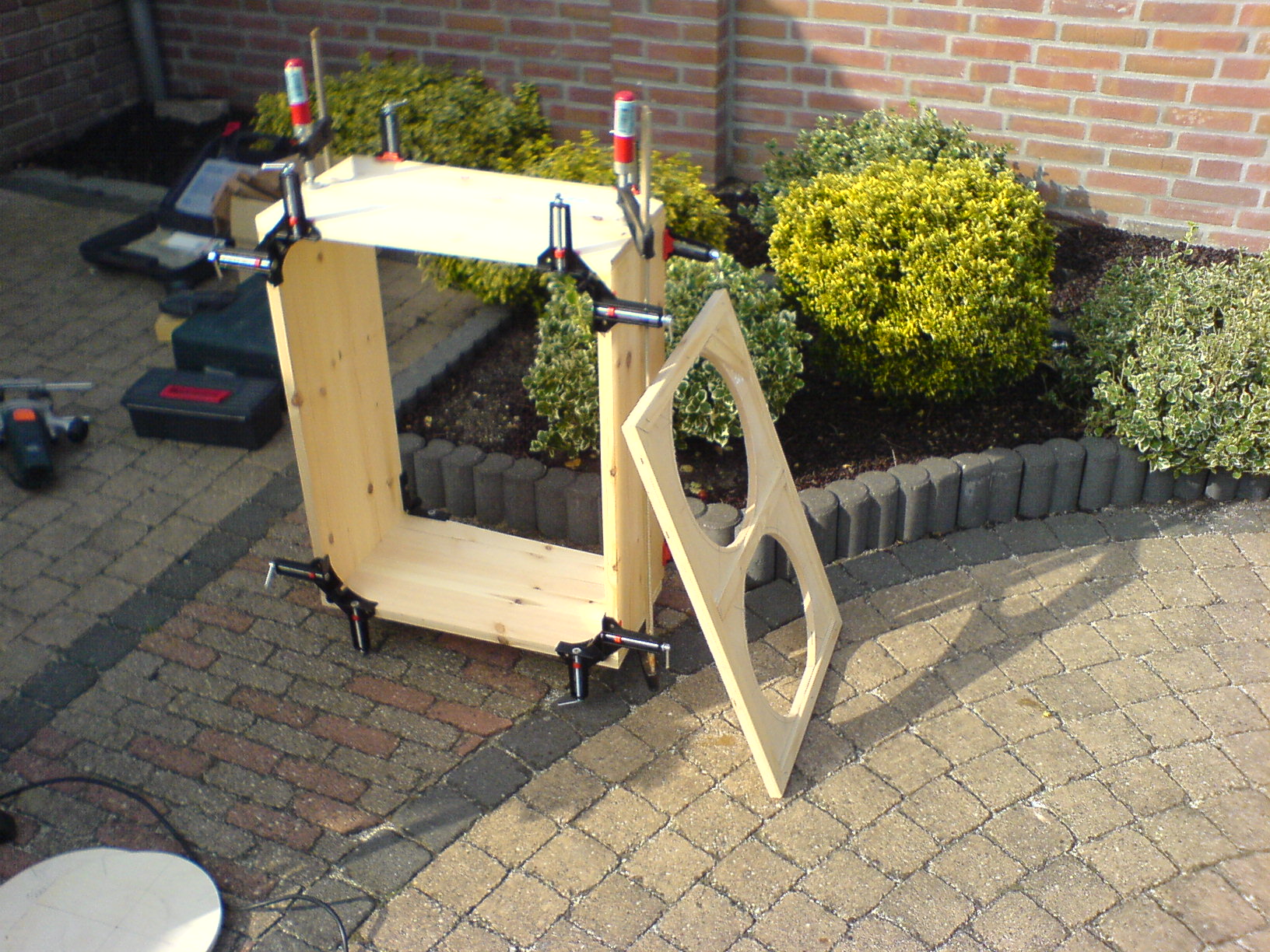

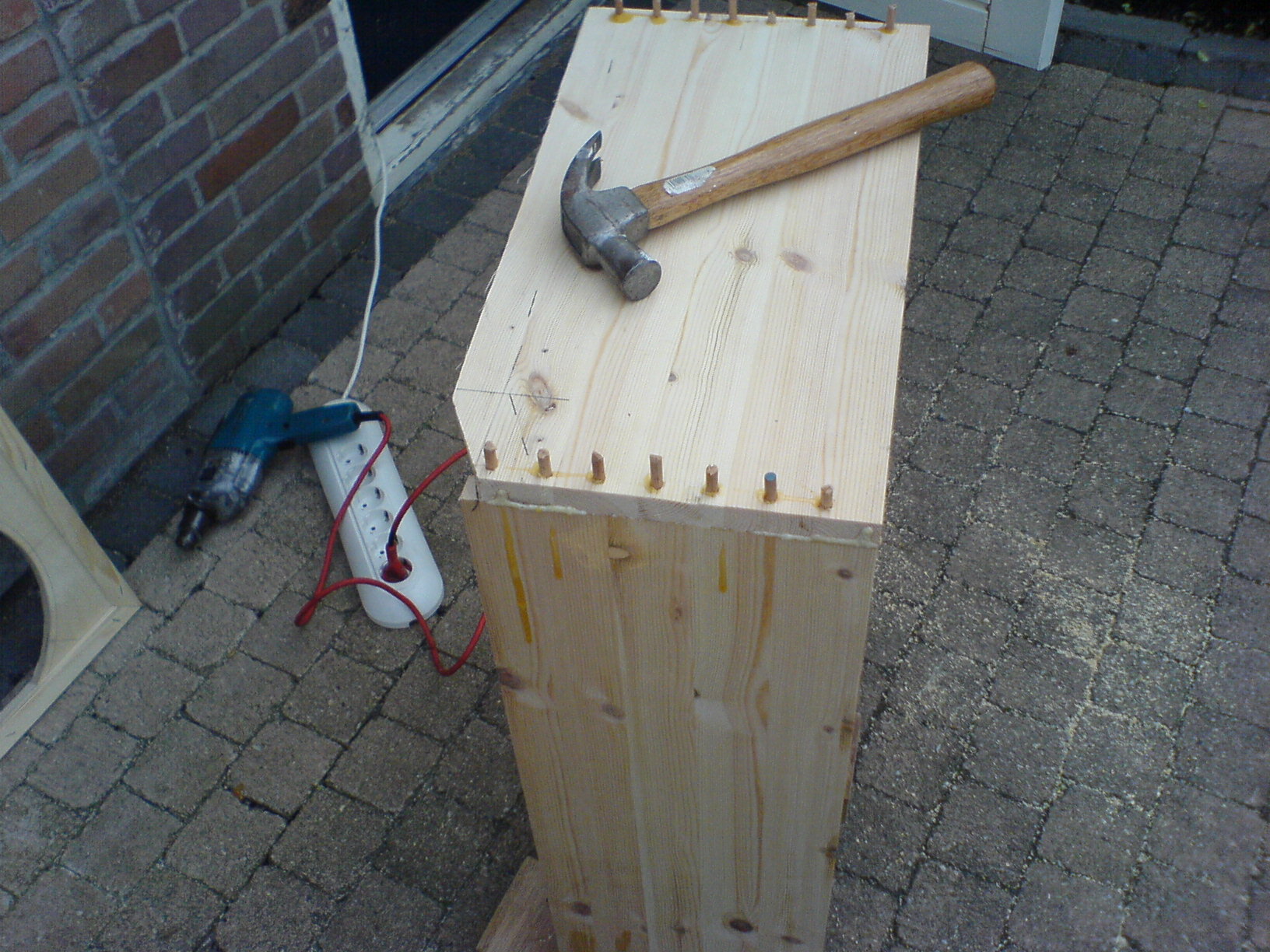

DSC00036DSC00037DSC00043DSC00046 DSC00045

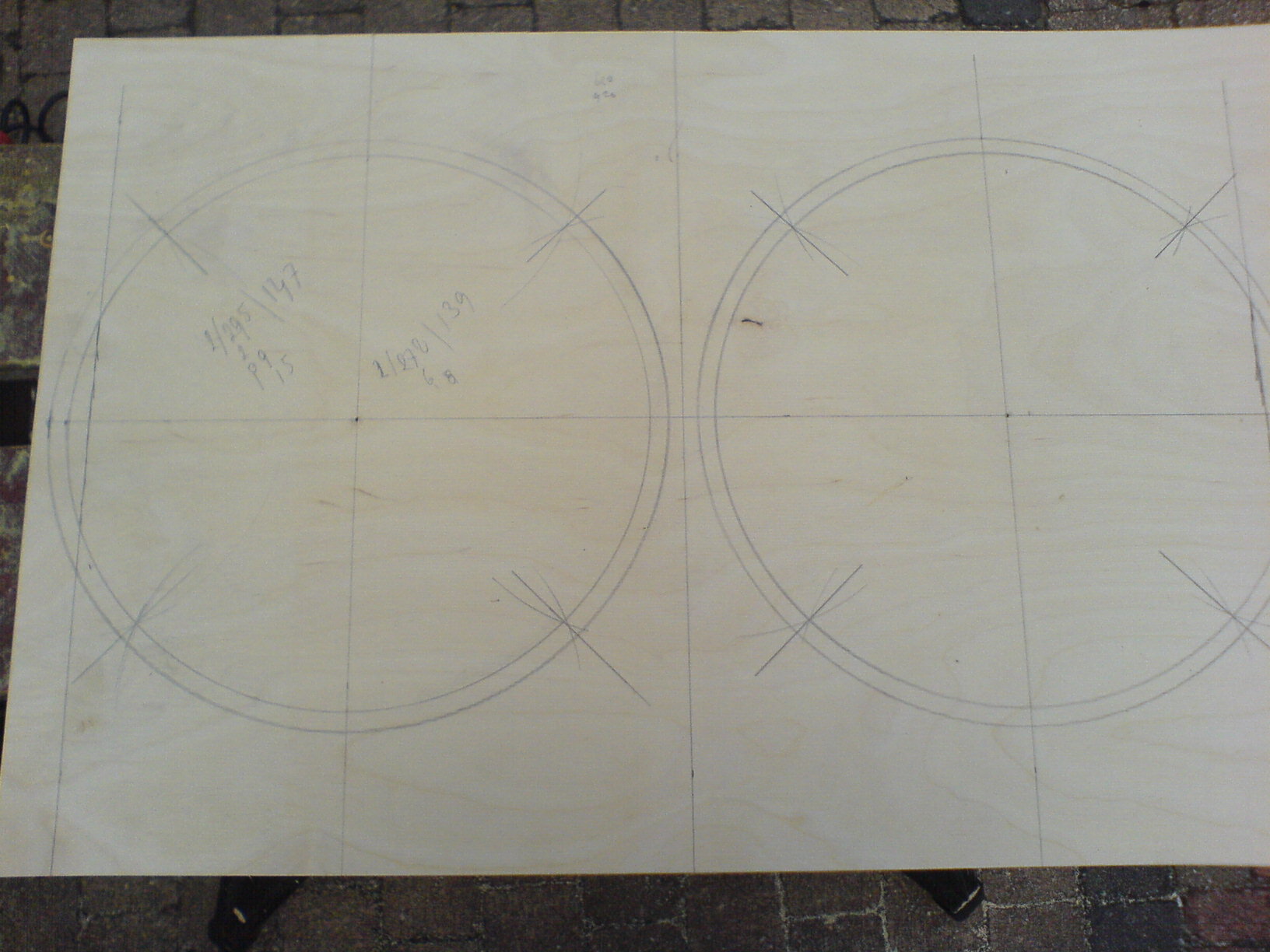

While the glue is drying you can make the baffle. I used 12mm birch high quality plywood for this.

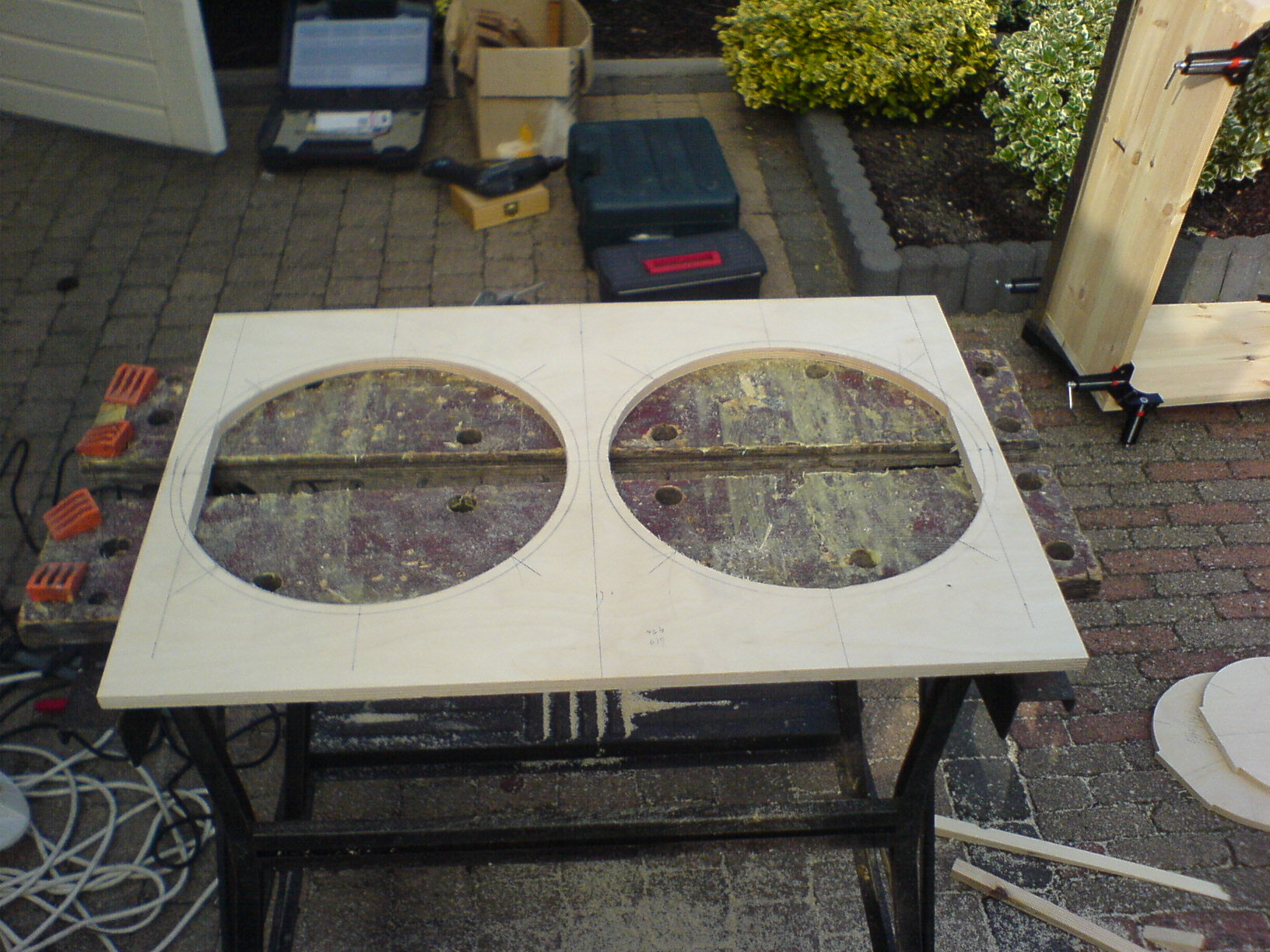

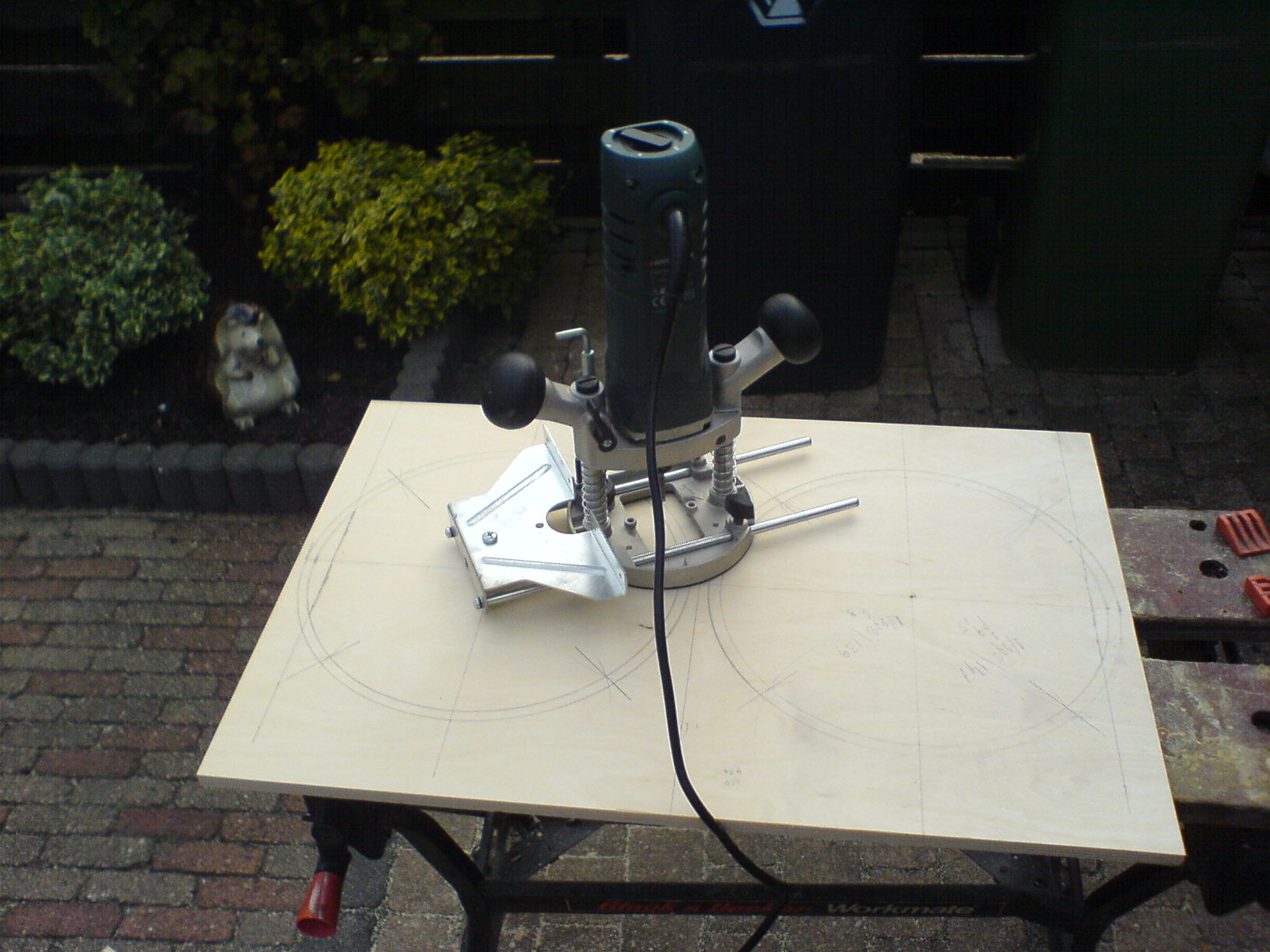

DSC00038 DSC00039DSC00040

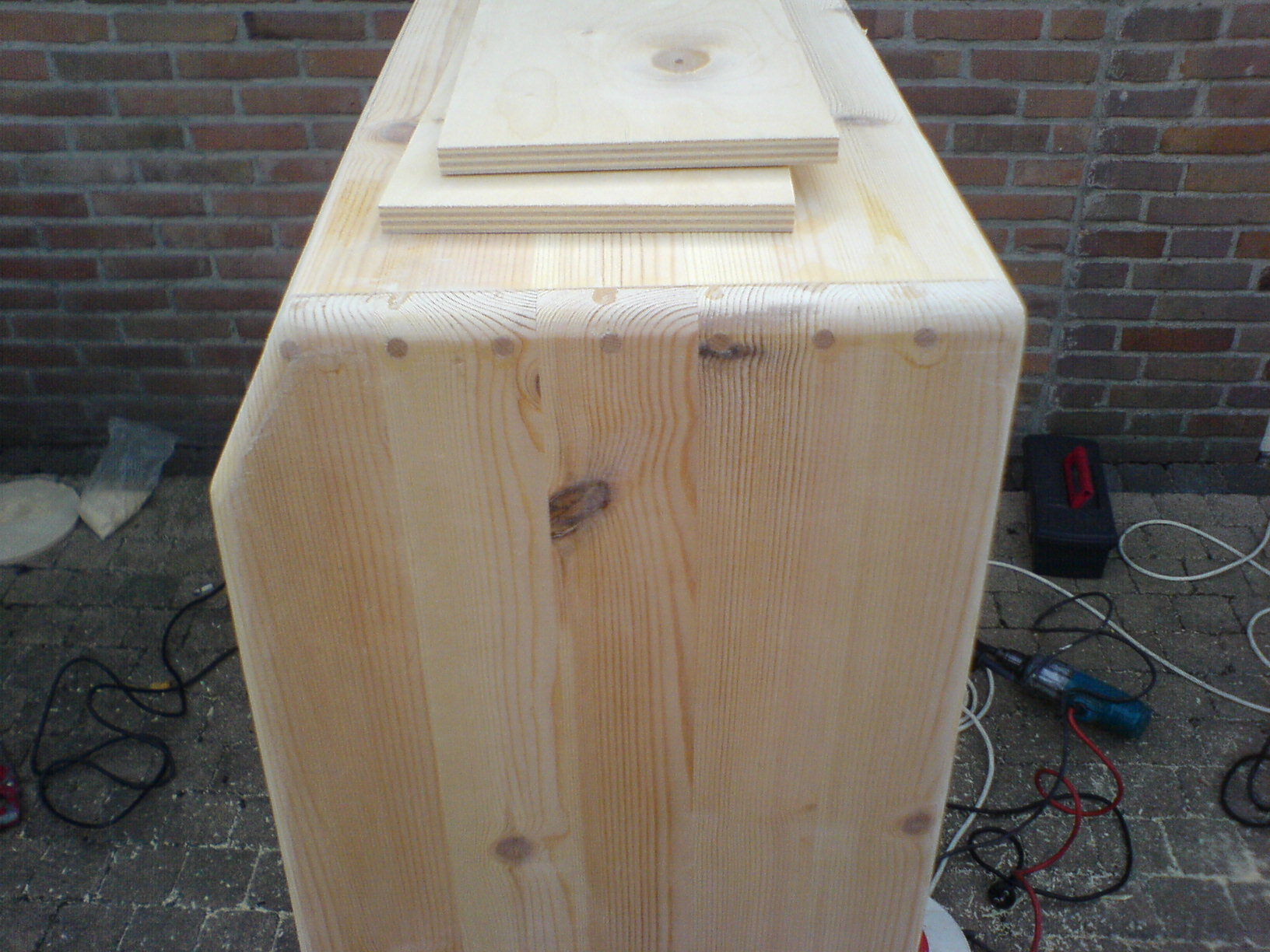

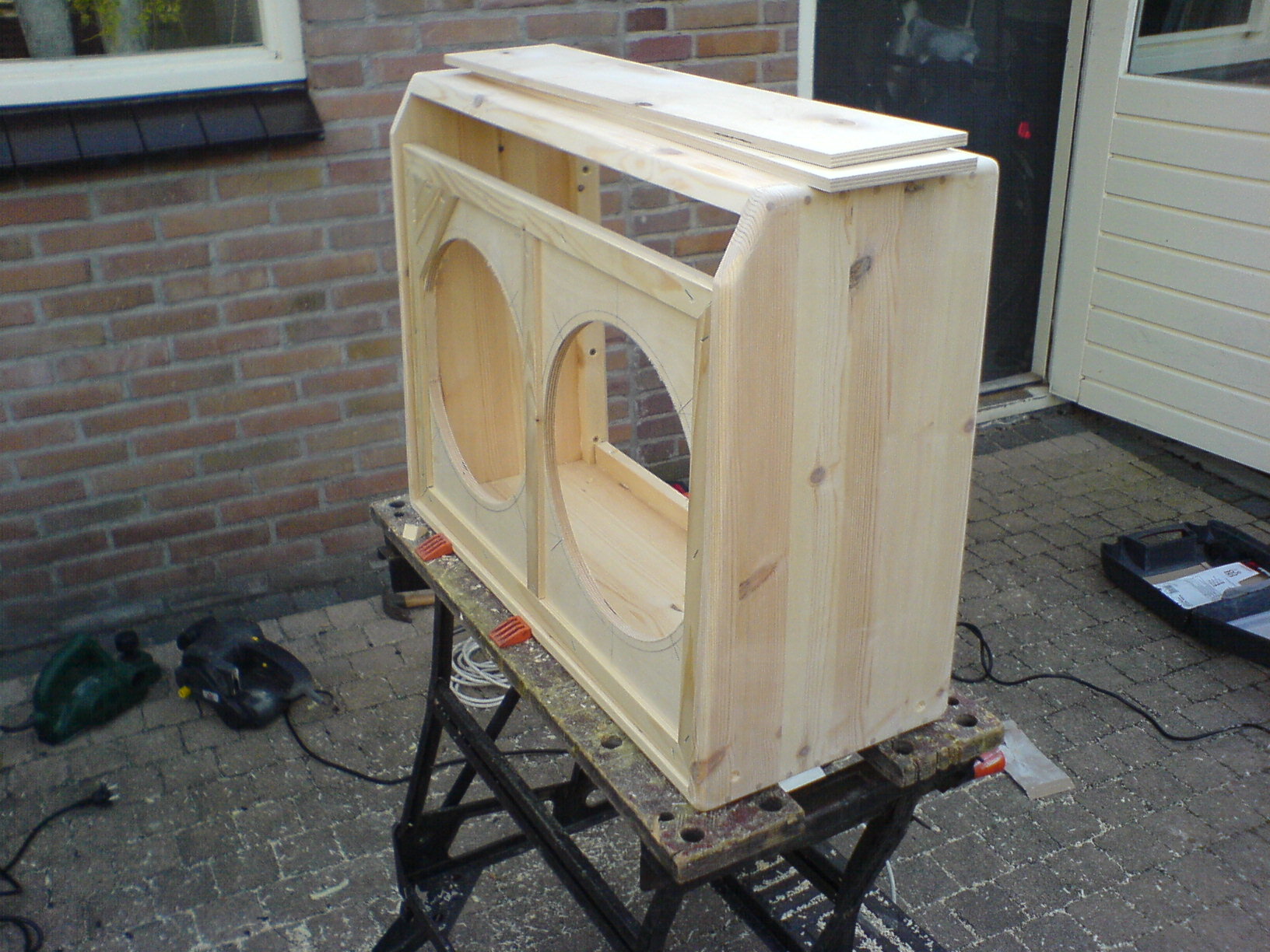

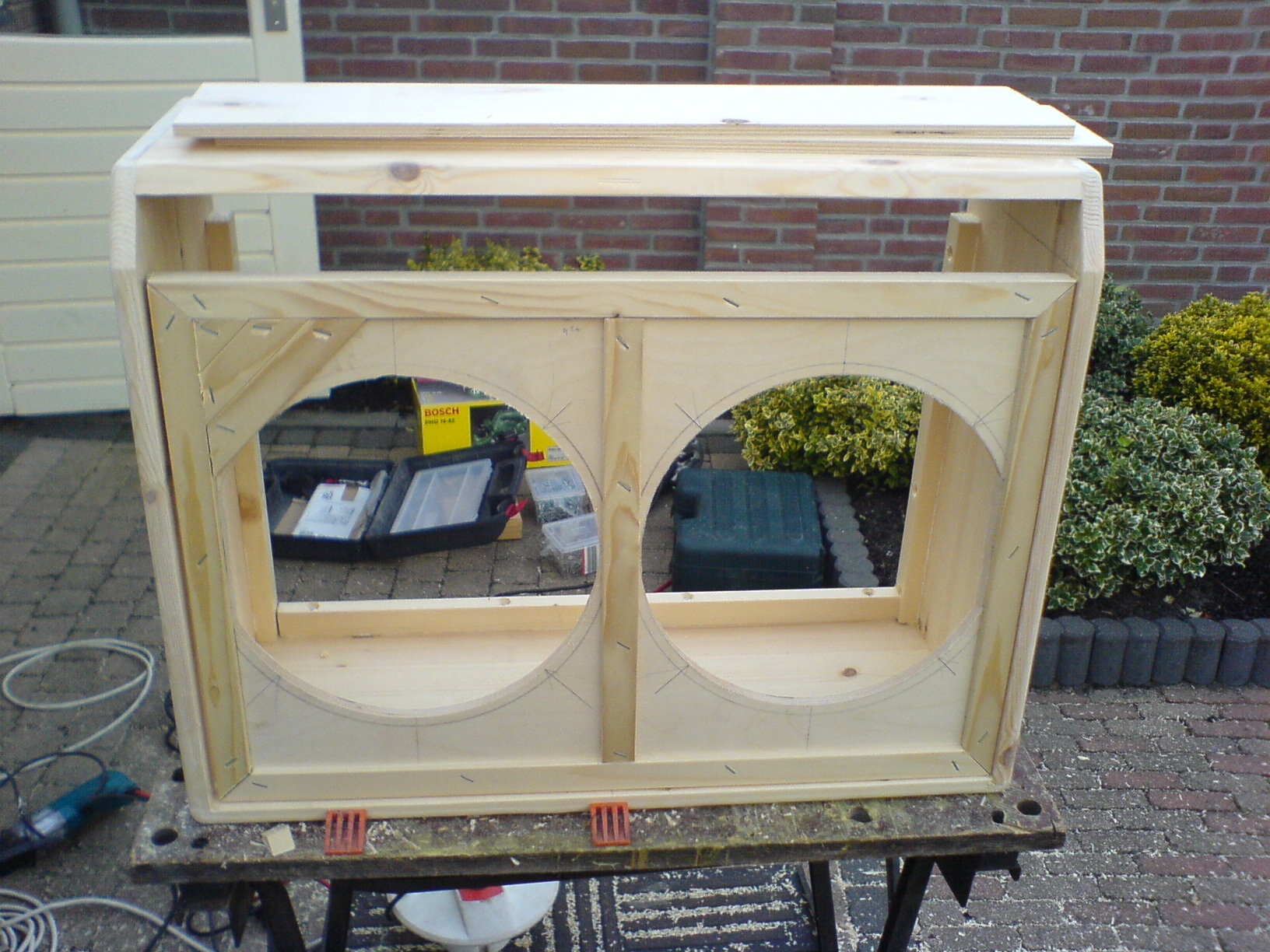

When the glue has dried, time to finish the cabinet. Cut off excess dowels, sanding, rounding corners etc.

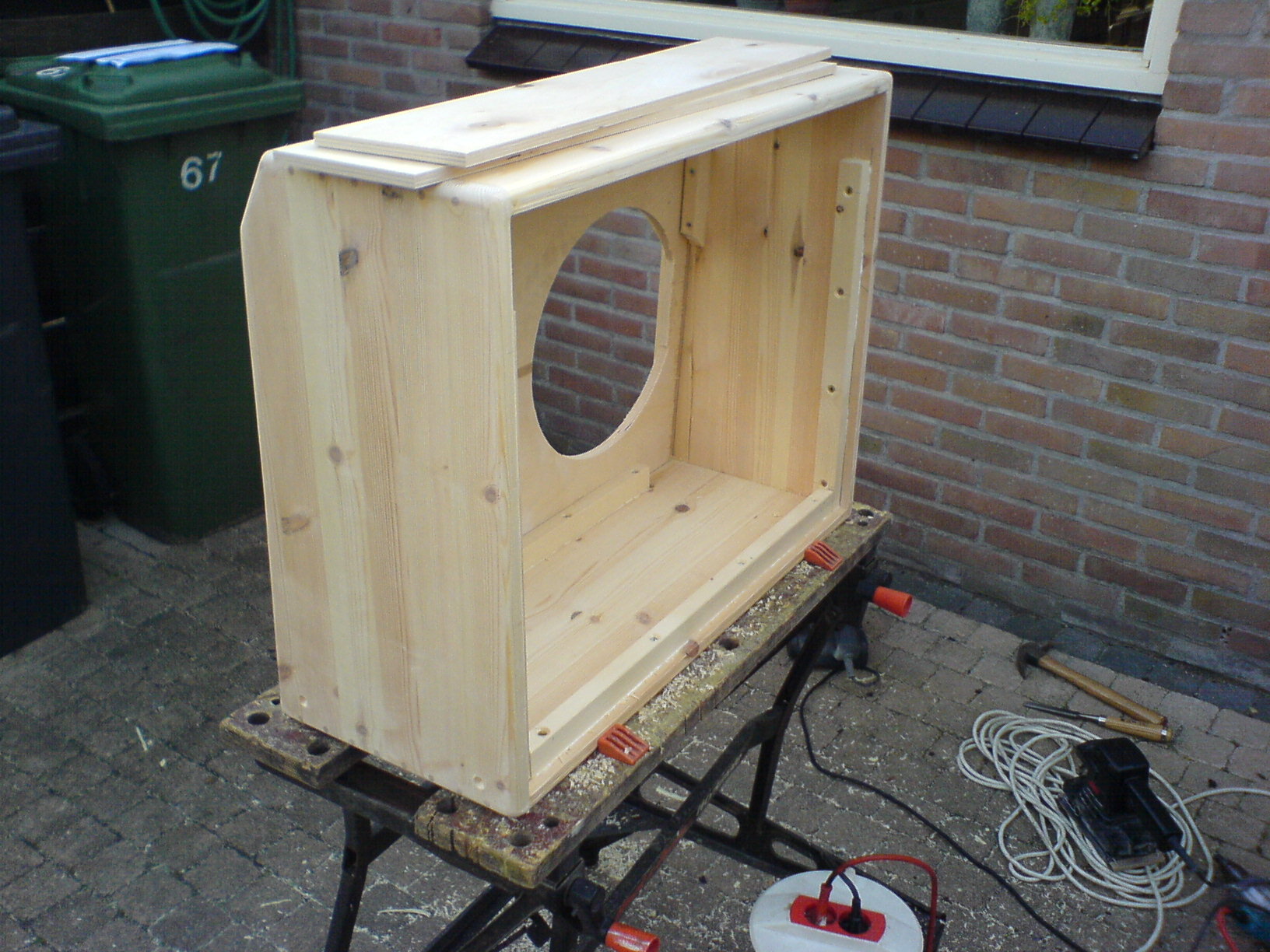

DSC00050 DSC00049 DSC00048 DSC00047

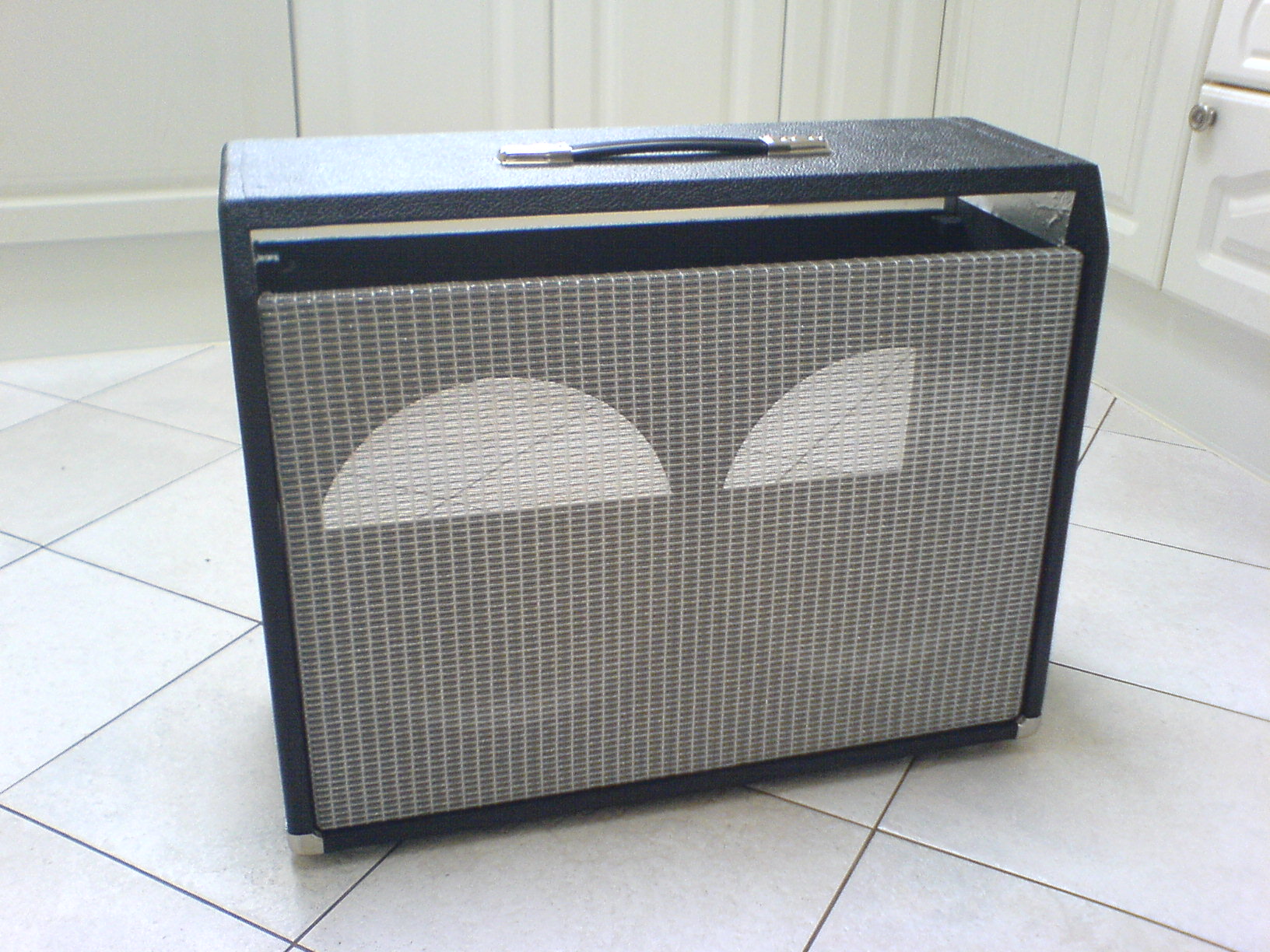

And last but not least 🙂 Tolex it and put the grill cloth on.

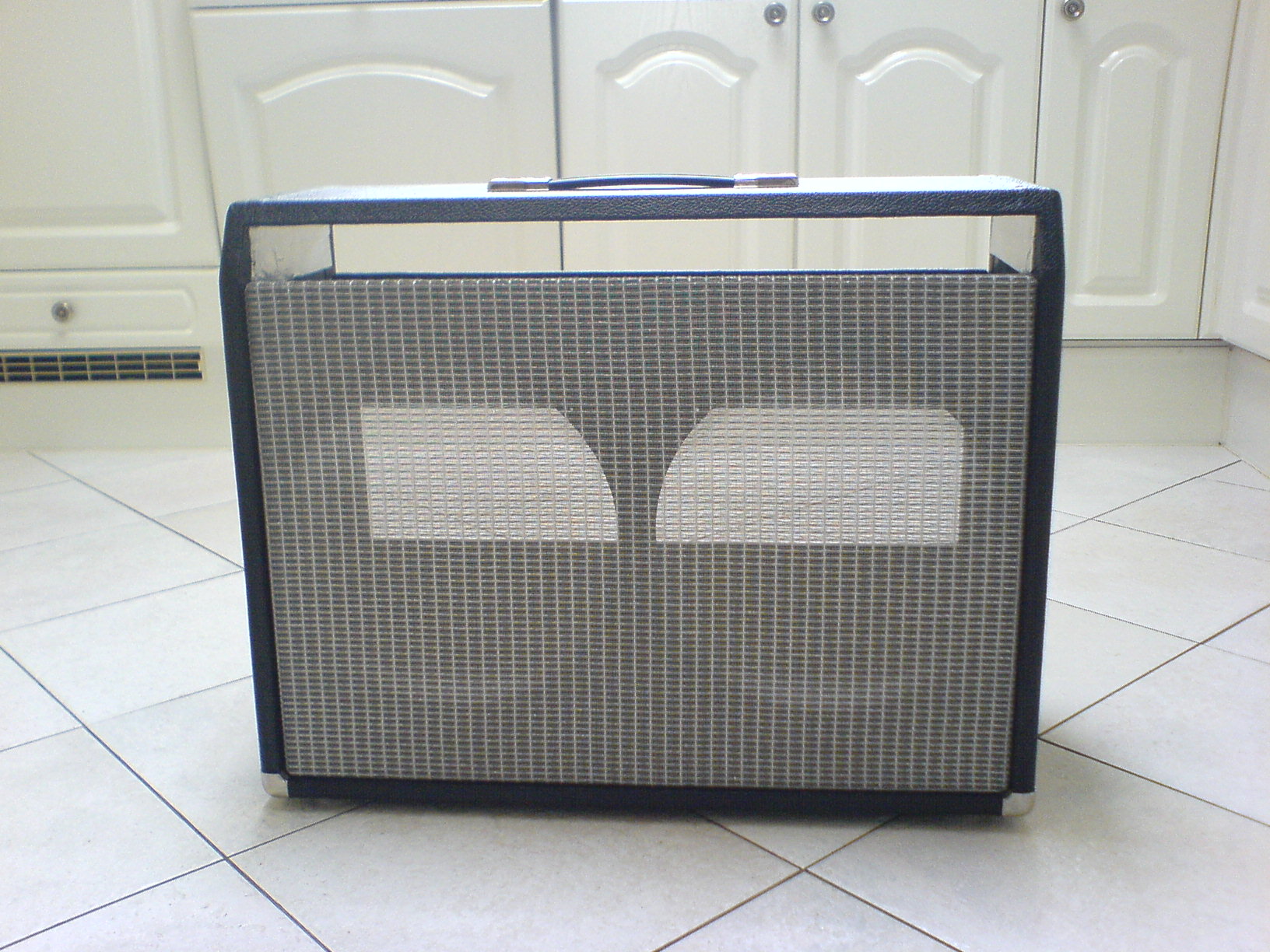

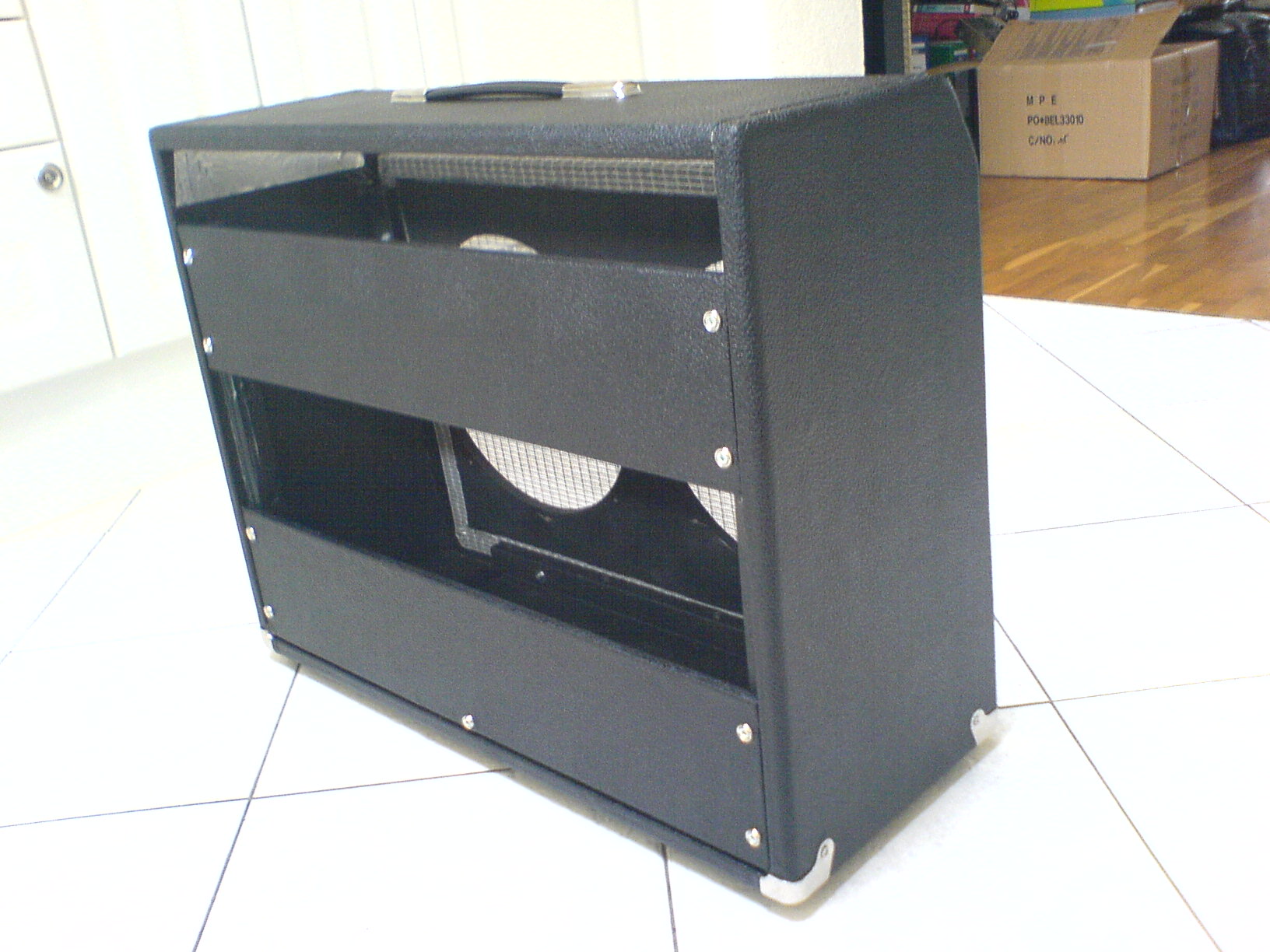

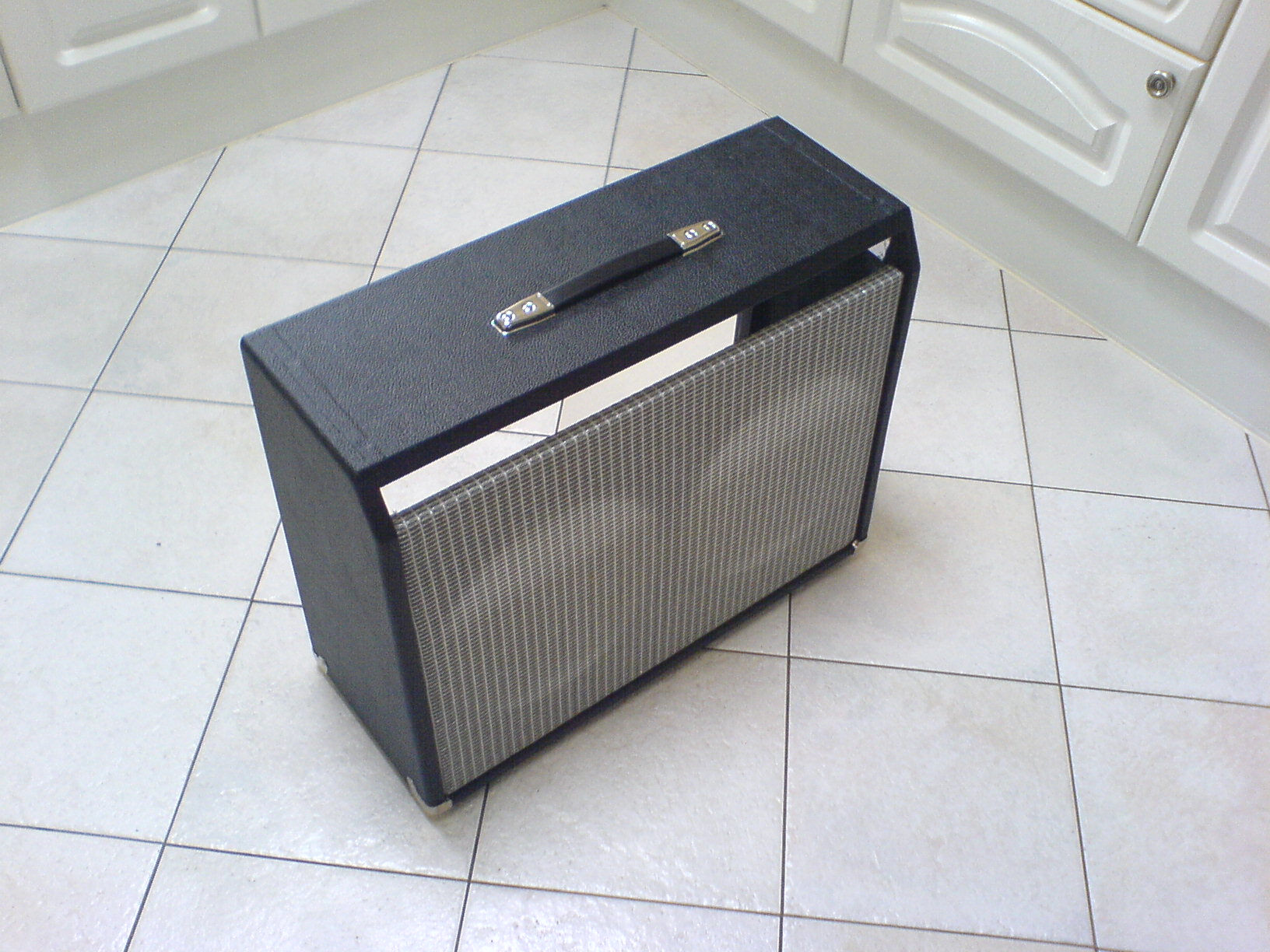

DSC00064 DSC00063 DSC00062 DSC00061

Eén reactie op Build a Twin Reverb cabinet

  1. alder schreef:

    Hi Nico, you did an excellent job with that cab!
    I found your drawings very helpful, and i will use them along with other “internet wisdom” to re-build the cab from a “chopped” 1973 ProReverb i got. Luckily the cabs are identical. I also have a twin reverb which i can also “consult” for measurements, but it doesn’t have a “floating” baffleboard.
    From the pics i can make out that you must have used about 4 screws to mount yours.
    Is that correct? Would i need more mounting points?
    btw, do you experience any rattles or unwanted vibration?
    Thanks in advance,
